Problem |
Solution |
- Drivers & Manuals
- When printing I get vertical lines printing on my plates. (OSX Rip)
- Loss of connection between rip and printer
- When you get a carriage mechanism error
- Plates will not feed on their own
- Print shifts left or right while printing
- Printer printing a white line in print every pass
- Paper feed error, paper feeds out half way and stops
Kimosetter |
|
- This is due to software security.
- Renter your software licence or plug in security dongle.
- Shutdown computer and printer
- Disconnect USB cable from printer and computer then reconnect.
(this cleans the connections). - Then restart both units

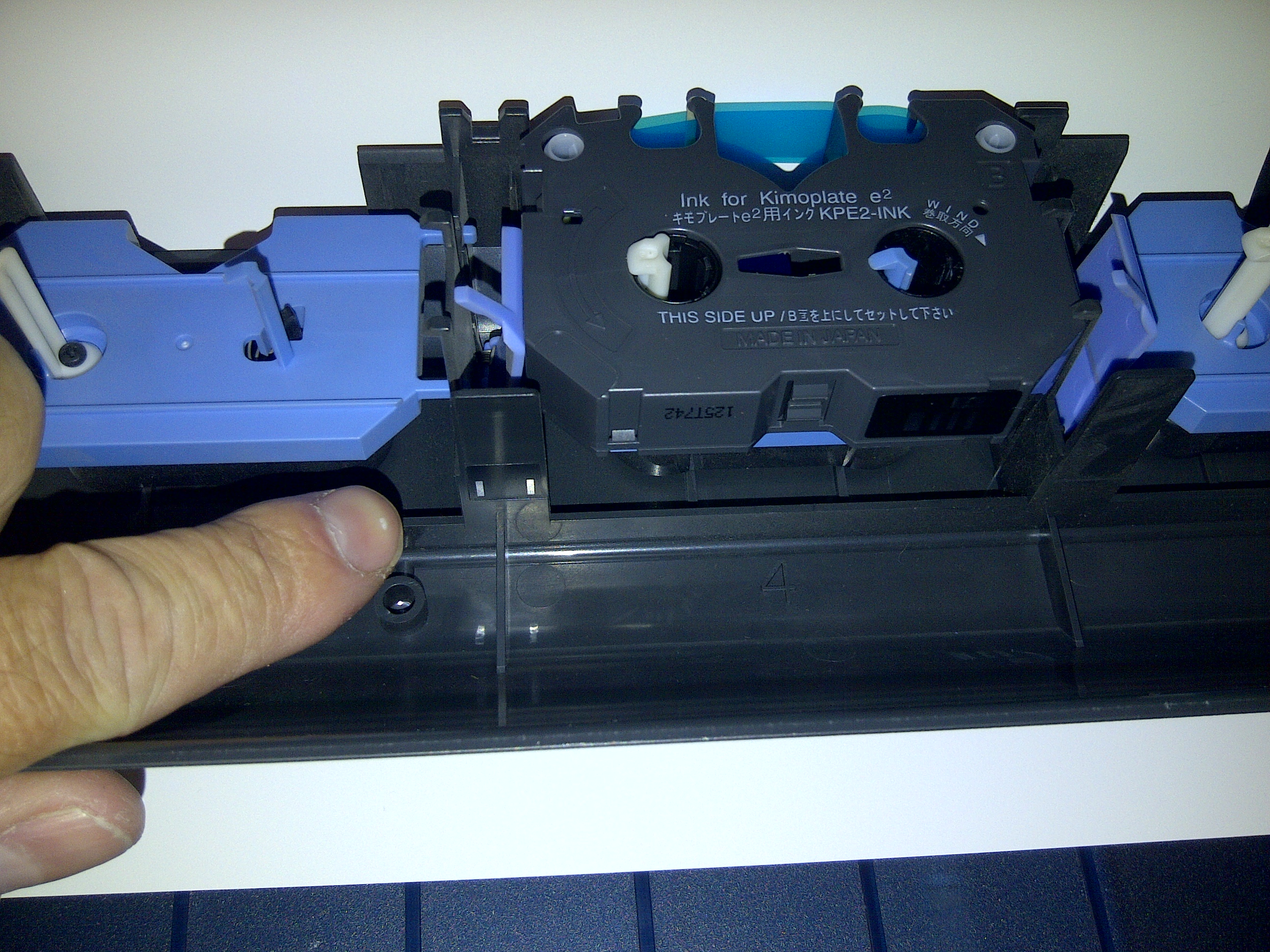

Check that the barcode on the cartridge door is clear of dust
It is located on the left side of cartridge holder 4 on the flat stem sticking up, it is a black sticker with 2 silver stripes
just give it a wipe with your finger.
(Service Required)
- Grey Feed rollers need cleaning.
(Service Required)
Cause:
- Printer carriage sticking while printing
(Service Required)
Causes:
- dirty print head
- bad linefeed adjustment
- bad ribon
- bad print head (need mech-unit)
(Service Required)
Causes:
- paper feed clutch gear not working correctly
